Black Dog Brutus Cartridge Tattoo Machine -

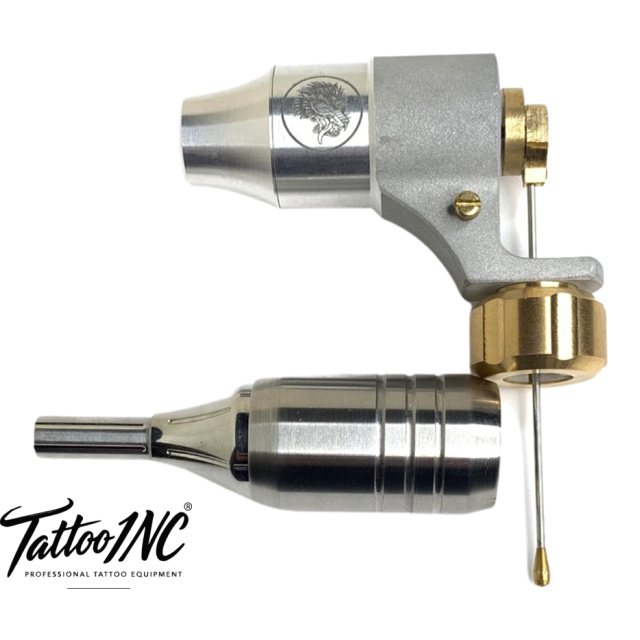

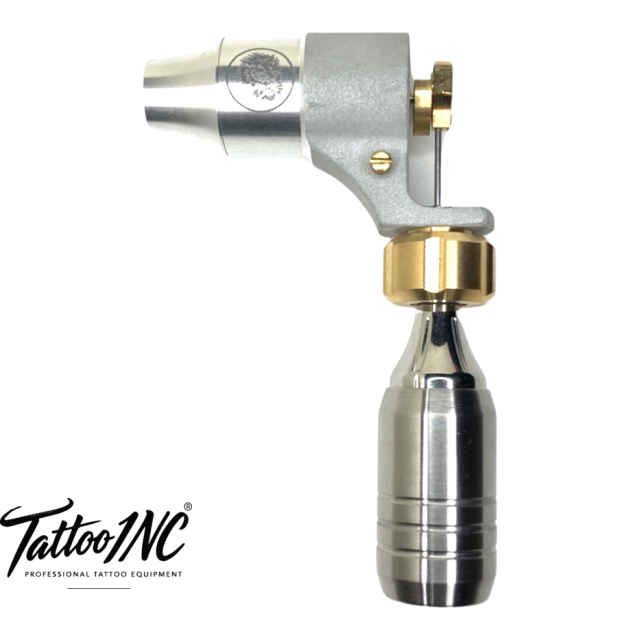

Black Dog Brutus Cartridge Tattoo Machine

Black Dog Brutus Cartridge Tattoo Machine machine  is locally assembled and maintained. It operates between 6 and 12 Volt VCD / DC depending of type of needle size and cartridge make. This cartridge tattoo machine  is compatible with all makes of standard tattoo cartridges. The construction has a lifetime guarantee, the cam system is driven by a Maxon A-max motor an innovative range of high-quality DC motor, equipped with powerful AlNiCo permanent magnets. The “heart” of the motor is the iron-less Maxon winding, which carries a one year guarantee. The guarantee is covered in-house and all repairs will be done by TattooINC Pty Ltd. All spares are carried in-house and turnaround for repairs are 5 working days.

This offer includes ;

1 X Black Dog Brutus Cartridge Tattoo Machine

1 x Stainless Steel Click

Specification

Drive:

Balanced Cam and bearing

Motor:

Maxon A-max 22 Ø22 mm, Precious Metal Brushes CLL, 5 Watt, Part number 110121

Nominal voltage 12 V
No load speed 10400 rpm
No load current 16.8 mA
Nominal speed 7770 rpm
Nominal torque (max. continuous torque)  6.24 mNm
Nominal current (max. continuous current) 0.586 A
Stall torque 24.3 mNm
Stall current 2.23 A
Max. Efficiency 84 %
