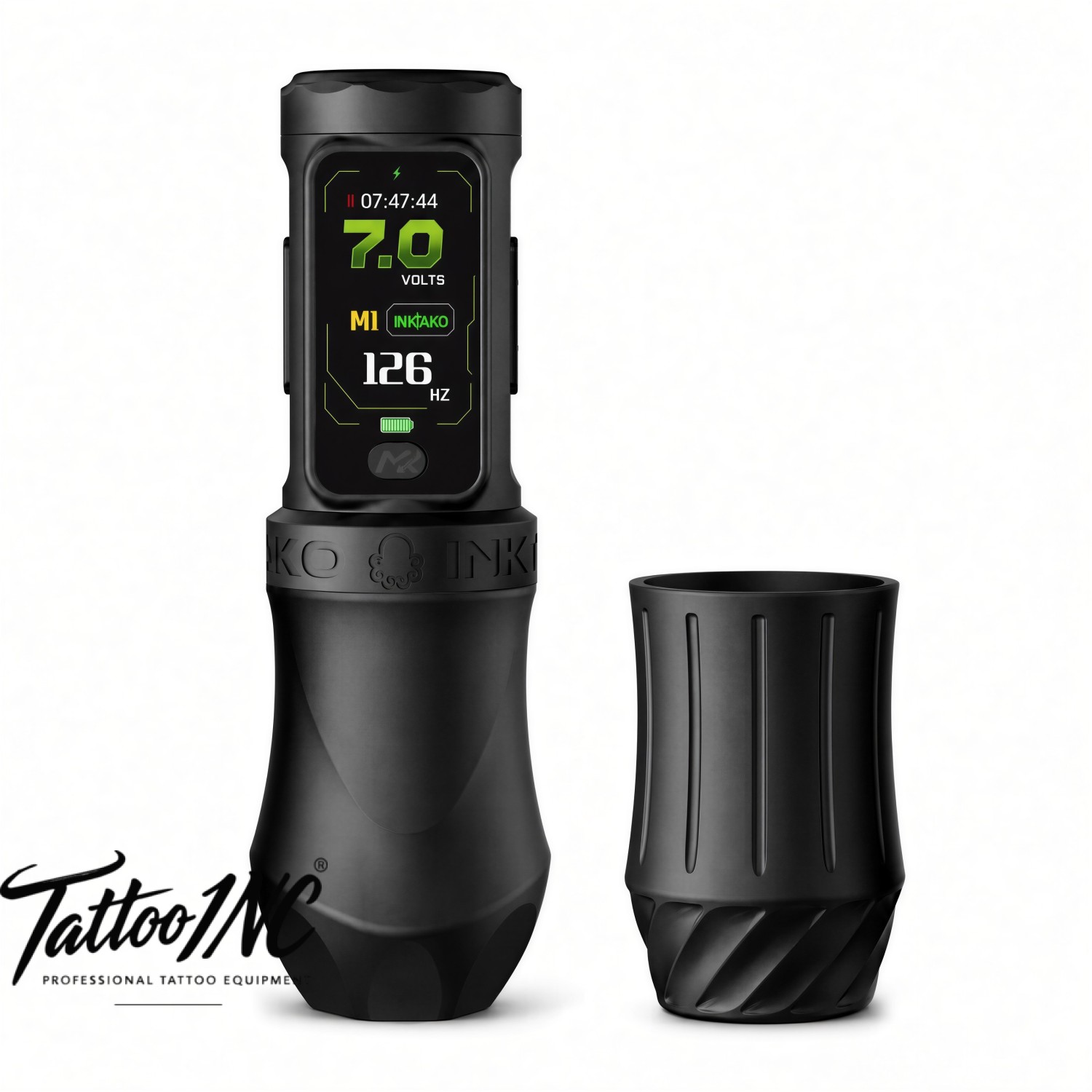

BlackDog × INKTAKO AT7 Limited Professional Wireless Tattoo Machine

BlackDog × INKTAKO AT7 Limited Collaboration Professional Wireless Rotary Tattoo Machine

Only 10 collaboration machines available: 5 Black and 5 Dark Metallic Blue.

The BlackDog × INKTAKO AT7 is a limited professional wireless rotary tattoo machine developed through a collaboration between BlackDog and INKTAKO for the South African professional tattoo market.

The AT7 combines a five-position adjustable stroke system, five interchangeable rebound configurations, a custom Japanese brushless motor, three electronic operating modes and interchangeable battery power in one professional platform.

Machines supplied through TattooINC are locally maintained and serviced in South Africa, giving professional artists access to local technical support without relying exclusively on overseas servicing.

5-Position Adjustable Stroke

The AT7 provides five selectable stroke lengths:

• 3.0 mm
• 3.5 mm
• 4.0 mm
• 4.5 mm
• 4.8 mm

This allows the machine to be configured for different techniques instead of limiting the artist to a single fixed stroke.

5 Rebound Configurations

The AT7 also includes five interchangeable rebound configurations that alter the resistance and response of the drive system.

Combined with the five stroke settings, this provides up to 25 mechanical combinations, allowing the artist to tune the machine from a firmer, more direct response to a softer working feel.

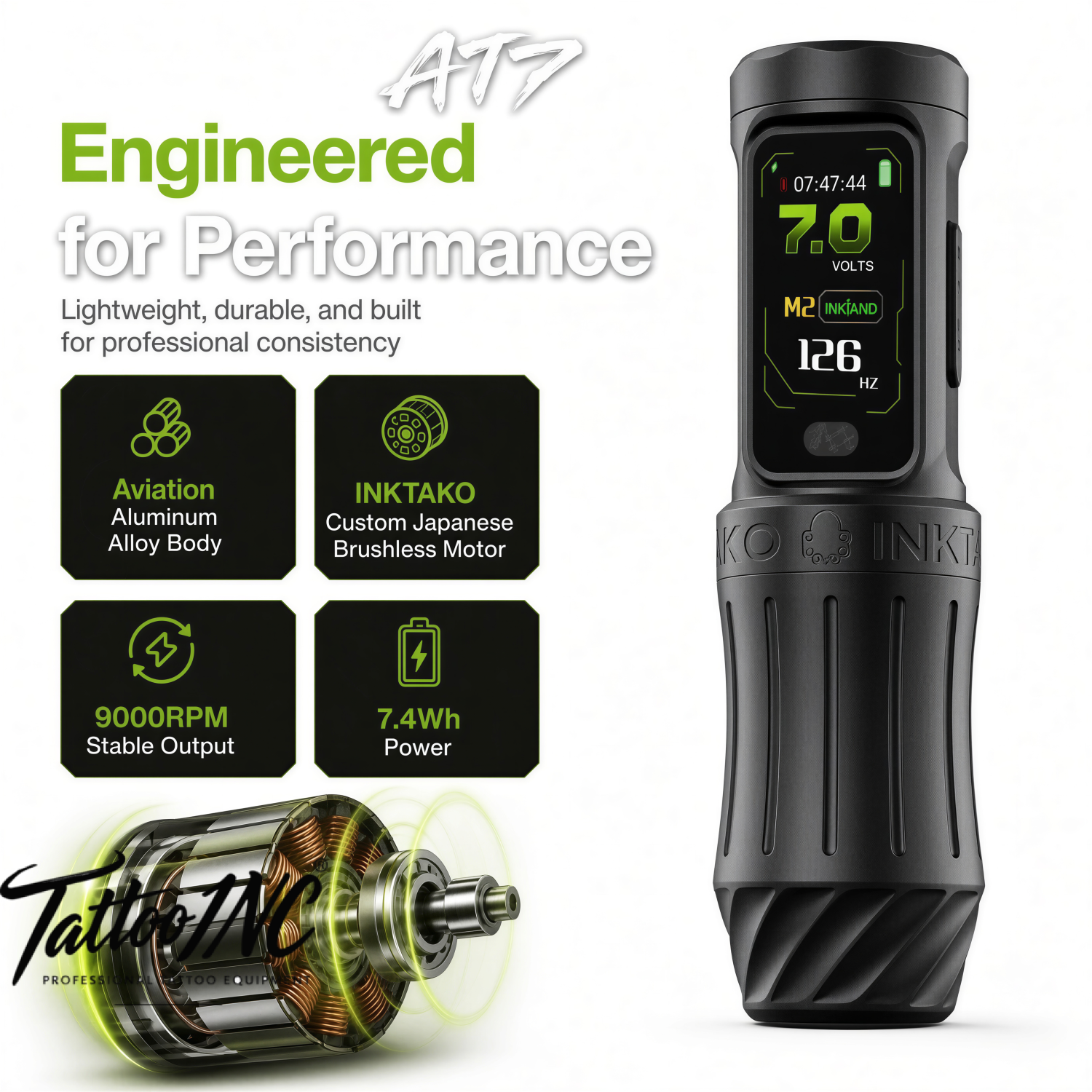

Custom Japanese Brushless Motor

The AT7 uses a custom Japanese brushless motor with a published maximum speed of 9,000 RPM.

• Brushless motor architecture
• Direct-drive system
• High-torque response
• Low-vibration operation
• Reduced operating noise

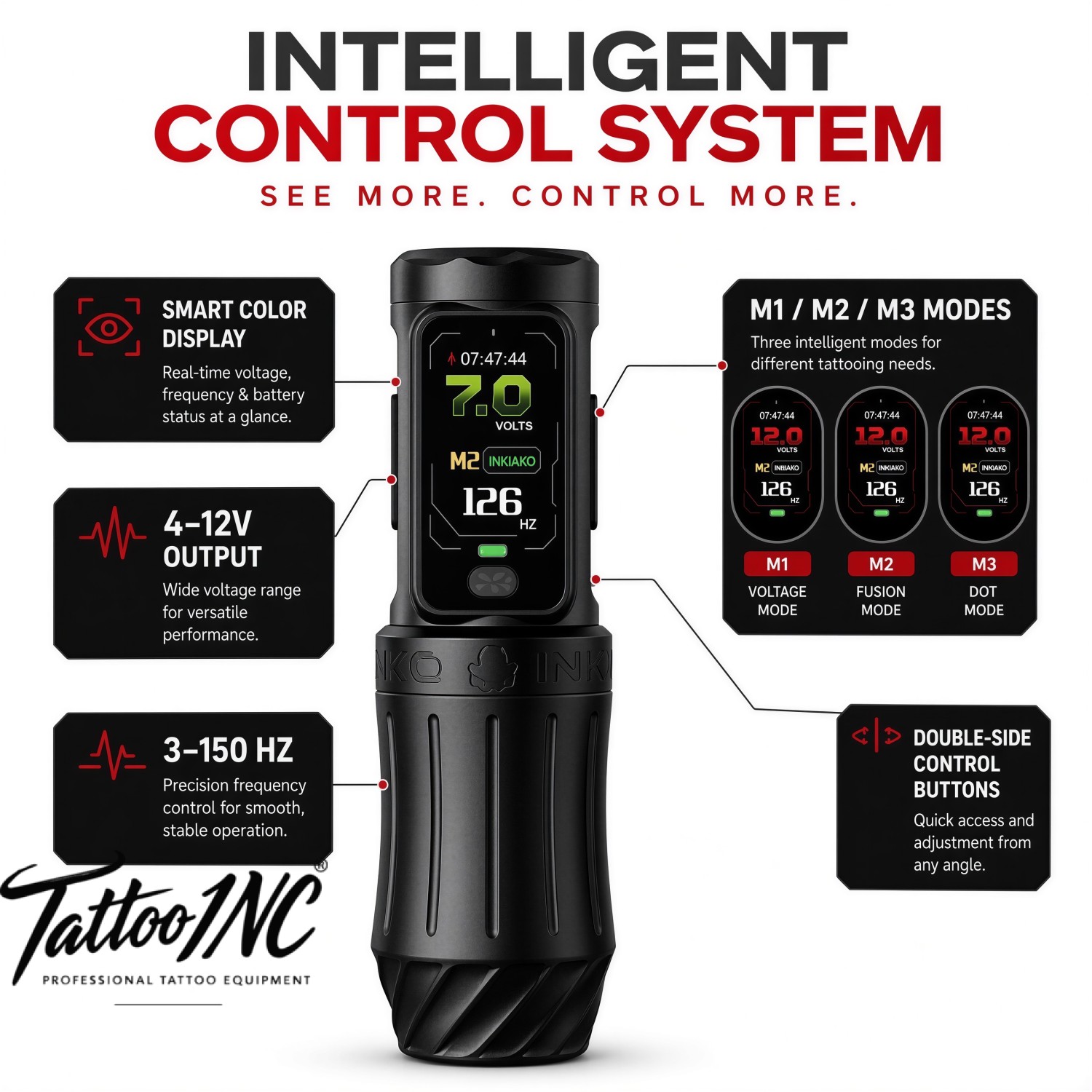

3 Electronic Operating Modes

M1 | Voltage Mode
Conventional voltage-controlled operation for predictable machine response.

M2 | Fusion Mode
Designed to compensate for changes in operating load and help maintain a more consistent response while working.

M3 | Dot Mode
A dedicated mode for controlled dotwork and other intermittent applications.

3–150 Hz Frequency Control

The AT7 operates across a published frequency range of 3–150 Hz, giving experienced artists additional control over machine behaviour beyond conventional voltage adjustment alone.

Full-Colour Display

The integrated colour display provides direct access to important operating information, including:

• Voltage
• Frequency
• Battery status
• Operating time
• Selected operating mode

Three 2000 mAh Interchangeable Batteries

The AT7 is supplied with three interchangeable 2000 mAh rechargeable batteries.

Published runtime is approximately 4–5 hours per battery under typical operating conditions. Actual runtime will vary according to voltage, frequency, cartridge configuration, operating mode and working conditions.

The interchangeable battery system allows a charged battery to be fitted while another is charging.

Professional Working Range

The adjustable stroke, rebound system, direct-drive architecture and electronic controls make the AT7 suitable for a broad range of professional tattooing techniques, including:

• Fine line work
• General lining
• Black and grey
• Realism
• Soft shading
• Traditional tattooing
• Colour work
• Solid colour packing
• Dotwork

BlackDog × INKTAKO Collaboration

This AT7 forms part of a dedicated BlackDog × INKTAKO collaboration build for the South African professional tattoo market.

Only 10 machines are available from this collaboration:

• 5 Black

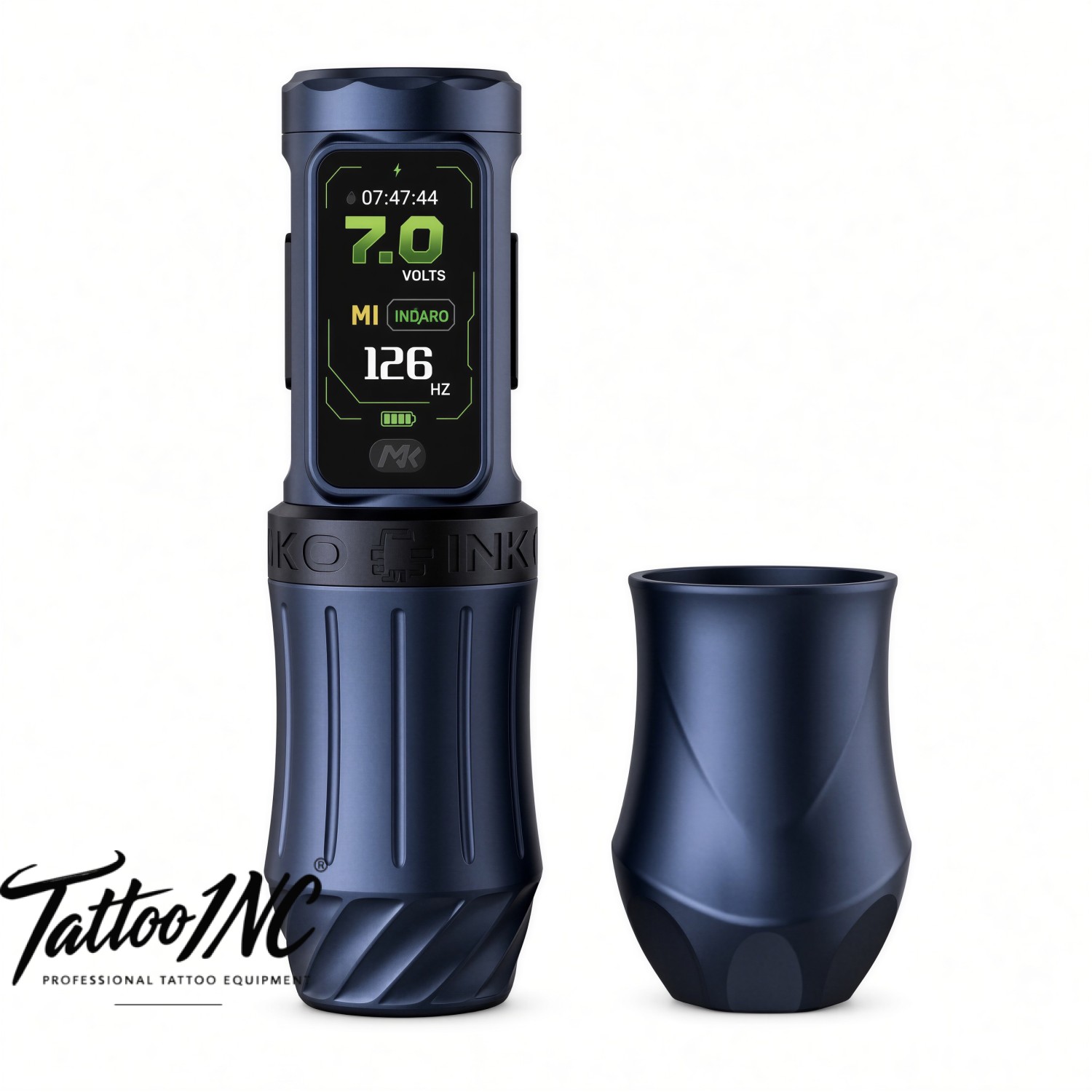

• 5 Dark Metallic Blue

Once these ten collaboration machines are sold, this allocation is complete.

Local Maintenance and Servicing

BlackDog × INKTAKO AT7 machines supplied through TattooINC are locally maintained and serviced by TattooINC in South Africa.

This gives professional artists access to local technical assessment, maintenance and after-sales support. Servicing, repairs and warranty-related matters remain subject to technical assessment and the applicable TattooINC and manufacturer terms.

Technical Specifications

Frequently Asked Questions

Is this a standard INKTAKO AT7?

No. This listing is for the limited BlackDog × INKTAKO collaboration build supplied through TattooINC in South Africa.

How many collaboration machines are available?

Only 10 machines are available: 5 Black and 5 Dark Metallic Blue.

What stroke settings are available?

The AT7 has five selectable stroke lengths: 3.0, 3.5, 4.0, 4.5 and 4.8 mm.

What does the rebound system do?

The five interchangeable rebound configurations change the resistance and response of the machine. Combined with the five stroke settings, they provide up to 25 different mechanical combinations.

What motor does the AT7 use?

The AT7 uses a custom Japanese brushless motor with a published maximum speed of 9,000 RPM.

What are the three operating modes?

The machine provides M1 Voltage Mode, M2 Fusion Mode and M3 Dot Mode.

What is the voltage range?

The published operating range is 4–12 V.

Can frequency be adjusted?

Yes. The published frequency range is 3–150 Hz.

How many batteries are included?

Three interchangeable 2000 mAh rechargeable batteries are supplied.

How long does each battery last?

Published runtime is approximately 4–5 hours per battery. Actual runtime depends on machine settings and operating conditions.

Can the AT7 be used for lining and colour packing?

Yes. The adjustable stroke and rebound system allow the machine to be configured for lining, shading, black and grey, colour work and solid packing.

Who services the AT7 in South Africa?

TattooINC provides local maintenance, servicing and technical support for BlackDog × INKTAKO AT7 machines supplied through TattooINC.

Will more of this collaboration build be available once these are sold?

This specific collaboration allocation is limited to ten machines. Once all ten are sold, this allocation is complete.

Professional Equipment

The BlackDog × INKTAKO AT7 is professional tattoo equipment intended for trained professional tattoo artists using appropriate studio hygiene, barrier protection and sterile single-use tattoo cartridges.

BlackDog × INKTAKO AT7. Limited to 10. Professional control. Local support.
