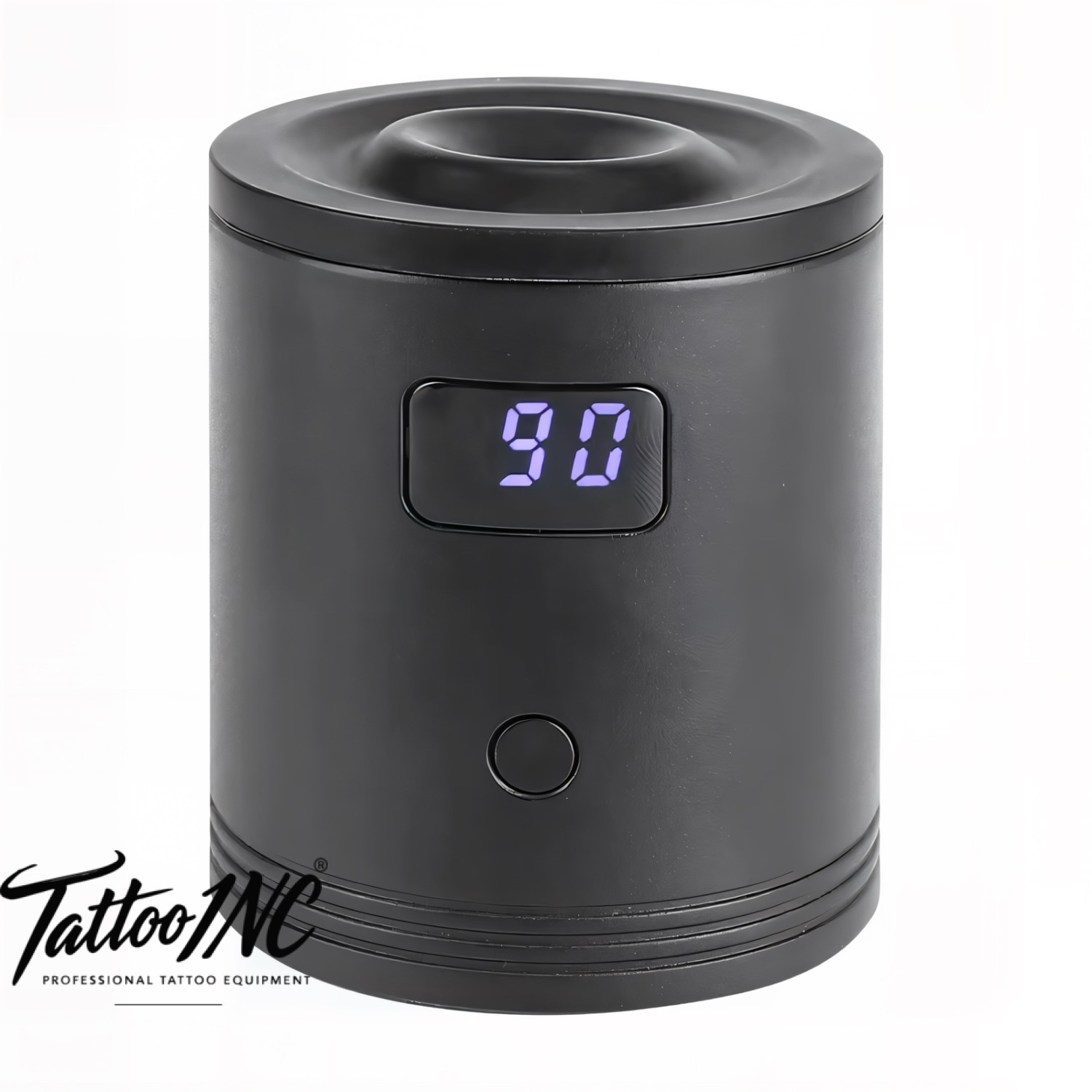

Super Mini Vortex Tattoo Ink Mixer
| File | Size | |
|---|---|---|
| TattooINC_Super_Mini_Vortex_Mixer_Introduction_Manual.pdf | 386.05KB | Download |

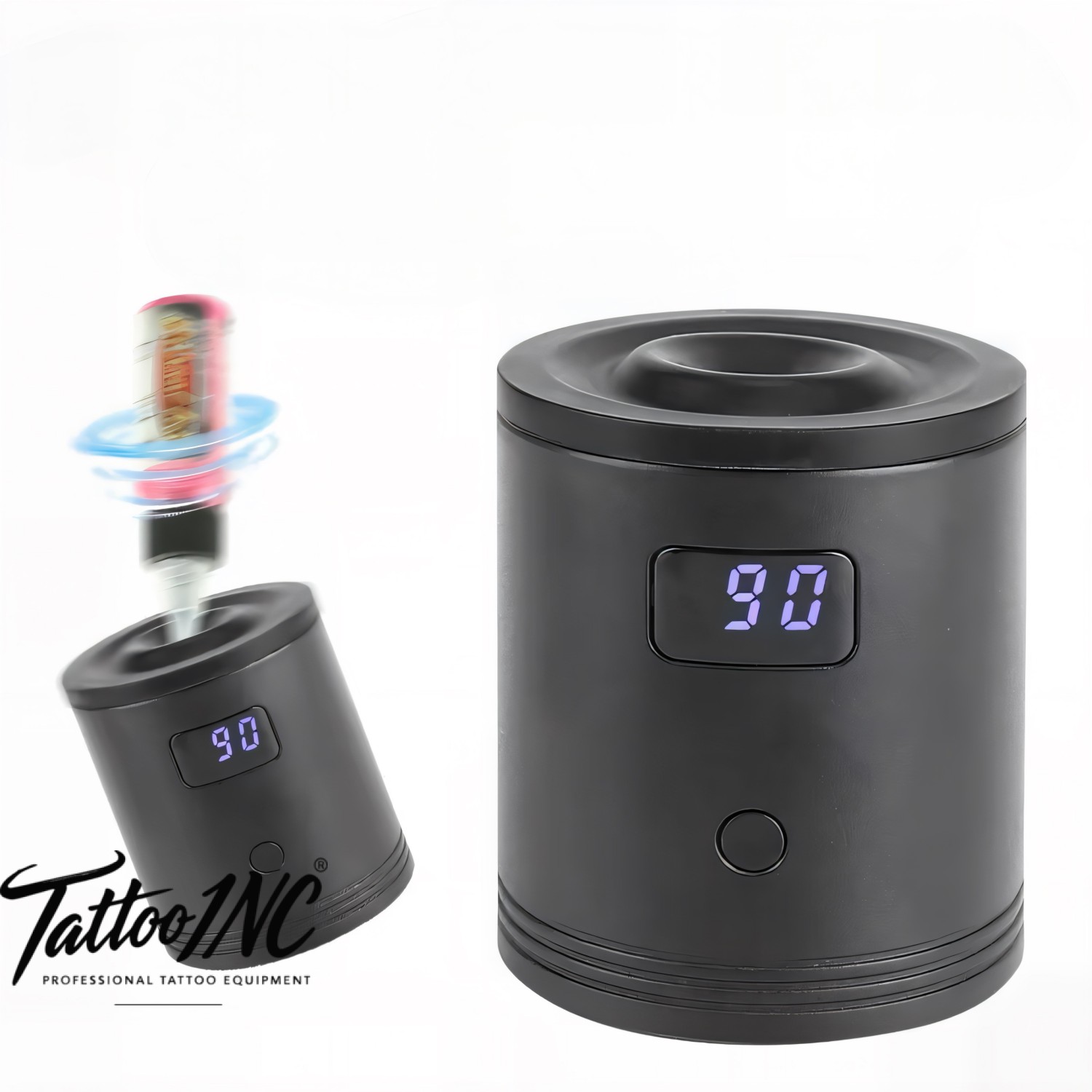

Mix 1oz and 2oz tattoo ink bottles fast and evenly. This super mini vortex mixer creates centrifugal vortex motion to re-suspend pigment in seconds. Use it to prevent settling, improve consistency, and keep colour and black mixing uniform across sessions.
Key features
- Centrifugal vortex mixing (no linear rocking)
- Designed for 1oz and 2oz ink bottles
- Fast mixing in about 5 seconds (depends on viscosity and fill level)
- 3-speed control with digital power and gear display
- Rechargeable and wireless operation
- Type-C charging

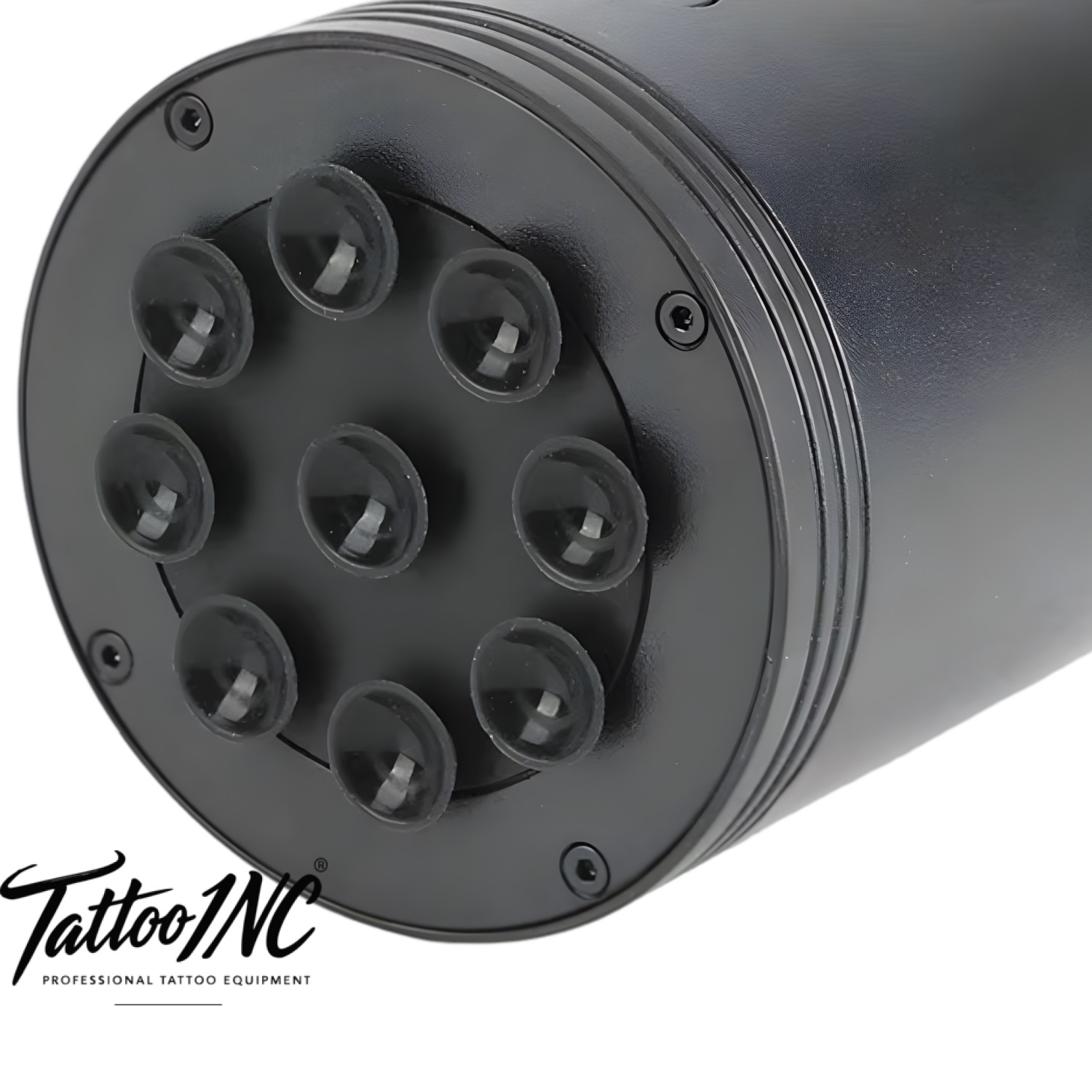

- Stable anti-slip base for bench use
- Auto touch switch control (long press on, click to change gear)
Specs
- Speed: Gear 1 = 3520 RPM, Gear 2 = 4000 RPM, Gear 3 = 5200 RPM
- Battery: 1000mAh
- Working voltage: 3.7V
- Charging: Type-C
- Size: 70 × 70 × 82 mm
- Weight: 215 g
Studio safety and hygiene
- Do not mix inks at the workstation or near open trays.
- Mix at a separate prep area to reduce contamination risk.
- Always barrier the mixer before use with a machine bag or barrier film.
- If using barrier tape, fully cover touch points and contact surfaces.
- Remove and discard barriers after use. Disinfect the unit exterior.
How to use
- Place the mixer on a flat, stable surface in your prep area.
- Barrier the unit with a machine bag or barrier film.
- Ensure the 1oz or 2oz bottle cap is closed tight.
- Long press the button to power on.
- Click to switch gears (1–3).
- Mix in short bursts (about 20–60 seconds) until pigment looks uniform.
Cleaning and care
- After removing the barrier, wipe the exterior with a clean cloth.
- Disinfect the exterior with 70% isopropyl alcohol on a cloth.
- Do not submerge the unit.
- Keep liquids away from the button, display, and charging port.
- Recharge via Type-C when needed.
Questions and answers
Q: What bottle sizes is this mixer made for?
It is designed for 1oz and 2oz ink bottles.
Q: Is it rechargeable and wireless?
Yes. It runs on a built-in 1000mAh battery for wireless use and charges via Type-C.
Q: What speeds does it run at?
3520 RPM, 4000 RPM, and 5200 RPM (3 gears).
Q: How do I switch gears?
Long press to power on. Click to switch between gears 1–3.
Q: Where should I mix inks in the studio?
Mix at a separate prep area, not at the workstation, to reduce contamination risk.
Q: Do I need to barrier the device?
Yes. Always use a machine bag or barrier film. Barrier tape can be used to cover touch points.
Q: How fast will it mix ink?
Many inks mix in about 5 seconds, but thicker pigments may need longer bursts.
Q: How do I clean it?
Remove the barrier, then wipe and disinfect the exterior. Do not soak or submerge.
